2.5Ton electric standing on pallet truck

  • 2.5Ton electric standing on pallet truck
  • 2.5Ton electric standing on pallet truck
  • 2.5Ton electric standing on pallet truck
  • 2.5Ton electric standing on pallet truck

2.5Ton electric standing on pallet truck

    Unit Price: 3500~4100 USD
    Min. Order: 1 Piece/Pieces
    Packaging: wooden pallet
    Productivity: 1000
    Brand: Zowell
    Transportation: Ocean,Land,Others
    Place of Origin: China
    Supply Ability: 1000
    Certificate: CE/ISO
    HS Code: 8427109000
    Port: Shanghai,Ningbo ,Lianyungang

Basic Info

Model No.: XPA25

Product Description

2.5Ton electric standing on pallet truck

Like other warehouse equipments such as stacker and forklift, pallet truck has been widely used in handling of materials. Compared with manual hand pallet truck, Zowell electric pallet truck can save a lot of time as well as labor. Its durability and strong power will give you confidence in any situations.

Detail features

1. Multifunctional handle
The multifunctional handle is imported from Germany. The operators can control the moving speed easily through the use of the handle, which is equipped with an emergency reverse button. This effectively protects the operator against injury in the event of an accident. The handle can achieve braking in both vertical horizontal positions, thus improving the tugger safety.

2. Safety protection
The soft PU armrest features a superior resistance to compression and impact, thus reducing indirect hits and injury during stacker movement. This can provide safety protection as well as comfort for the operators.

3. Safety switch
The power can be rapidly cut off in an emergency to ensure safety.

4. Buffered pedal
The foldable pedal saves space when the stacker is not in use. It features an excellent shock absorption function, providing comfort for the operators, and reduce working fatigue.

5. Side loading and unloading of storage battery
Side loading and unloading of storage battery makes maintenance and changing easy. Users can select among different brands, including FAMM, GS, HOPPECKE, and Trojan.

6. Dual balance wheel device
This device has a high passing ability because the running is stable.

7. AC drive
The maintenance free AC drive motor has no carbon brush, no contacts, a large torque and large output power. It uses a rear axle drive, providing perfect power and gradeability.

8. Lifting height limit
The lifting height can be precisely controlled to reduce energy waste.

9. Multifunctional meter
A multifunctional meter can display integrated electricity quantity, working time and failure codes. The operators can know the running condition of the stacker via the meter.

10. High power pump station
The 2.2kw high power pump station can provide a strong power for transporting goods. The noise is low as well. The whole truck noise is lower than 70 dB.

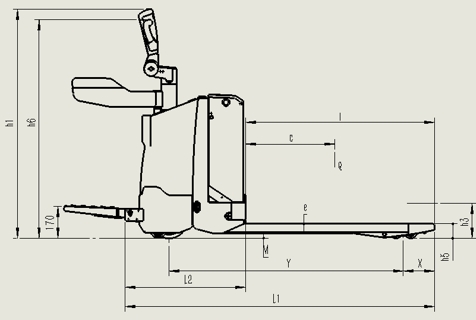

Technical Data

Identification 1 Product model designation XPA20 XPA25 XPA30
2 Drive unit Electric Electric Electric
3 Operate type Standing Standing Standing
4 Load capacity Q kg 2000 2500 3000
5 Load center C mm 600 600 600
6 Load distance,
Center of drive axle to fork back
X mm 190 190 190
7 Wheelbase Y mm 1460 1460 1460
weight 1 Truck weight (without battery) kg 500 500 505
2 Axle loading , loaded(front/rear) kg 1077/1696 1215/2003 1343/2235
3 Axle loading , unloading(front/rear) kg 540/140 547/143 558/147
Wheel 1 Tires Polyurethane Polyurethane Polyurethane
2 Drive wheels size mm Φ230×75 Φ230×75 Φ230×75
3 Loaded wheels size mm Φ80×70 Φ80×70 Φ80×70
4 Balance wheels size mm Φ100×40 Φ100×40 Φ100×40
5 Wheels number, front/rear(x=driven wheels) 1x-2/4 1x-2/4 1x-2/4
6 Tread ,front mm 518 518 518
7 Tread ,rear mm 340/390/500 340/390/500 340/390/500
Dimensions 1 Height, mast lowered h1mm 1345 1345 1345
2 Lift height h3mm 205 205 205
3 Forks height, lowered h5mm 85 85 85
4 Height of tiller in drive Position(max/min) h6mm 1345/985 1345/985 1345/985
5 Overall length L1mm 1910 1910 1910
6 Length to face of forks L2mm 760 760 760
7 Overall width b1mm 780 780 780
8 Fork dimensions s/e/lmm 180/55/1150 180/55/1150 180/55/1150
9 Maximum forks width b3mm 520/570/680 520/570/680 520/570/680
10 Minimum ground clearance Mmm 30 30 30
11 Aisle width for pallets 800x1200 lengthways Astmm 2312 2312 2312
12 Turning radius Wamm 1742 1742 1742
Performance 1 Travel speed loaded/unload km/h 5.2/6 4.8/5.6 4.8/5.6
2 Lift speed loaded/unload mm/s 40/50 40/50 40/50
3 Lowering speed loaded/unload mm/s 50/40 50/40 50/40
4 Max grade ability loaded/unload % 8/15 8/15 8/15
5 Service brake Electromagnetic brake Electromagnetic brake Electromagnetic brake
Electric motor 1 Drive motor rating kw 1.5 1.5 2
2 Lift motor rating kw 2.2kw 2.2kw 2.2kw
3 Battery voltage/capacity V/Ah 24/180 24/210 24/240
4 Battery weight kg 180 190 200
others 1 Control unit type Mosfet control Mosfet control Mosfet control
2 Sound level dB(A) <70 <70 <70

Product Display

Xpa20 25 30 2
