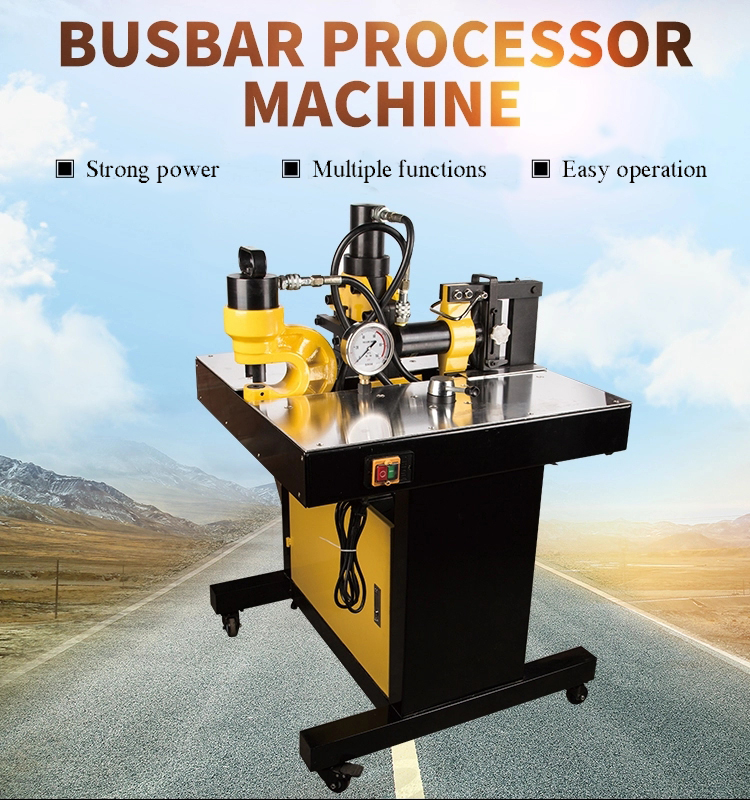

VHB-200 Multifunctional Hydraulic Busbar Processing Machine

  • VHB-200 Multifunctional Hydraulic Busbar Processing Machine
  • VHB-200 Multifunctional Hydraulic Busbar Processing Machine
  • VHB-200 Multifunctional Hydraulic Busbar Processing Machine
  • VHB-200 Multifunctional Hydraulic Busbar Processing Machine

VHB-200 Multifunctional Hydraulic Busbar Processing Machine

    Packaging: Plywood case or as requested for VHB-200 Multifunctional Hydraulic Busbar Processing Machine
    Productivity: 200 sets per month
    Brand: Haoxin
    Transportation: Air,Land
    Place of Origin: China
    Supply Ability: 200 sets per month
    Certificate: ISO 9001/ISO 14001
    HS Code: 846249000
    Port: Shanghai port,Ningbo port

Basic Info

Model No.: VHB-200

Product Description

The hydraulic busbar processor integrates the functions of punching, cutting and flat bending. The busbar processing machine is equipped with three processing units, which can respectively punch, shear and fold the bus through manual and foot switch. By changing the mold, it can also complete the processing of different processes such as flat bending, vertical bending, U-shaped bending, embossing, punching round hole and long round hole. The three in one bus processing machine has high production efficiency and convenient use. It is mainly applicable to high and Low Voltage Switchgear and transformer manufacturing industries, as well as complete sets of transmission and distribution equipment and complete sets of power production, processing and manufacturing enterprises. The machine is equipped with two operation modes: manual button and foot switch. It has the advantages of simple operation, flexible and convenient use, and can be easily used and operated by ordinary skilled workers.

1. The 3-in-1 hydraulic busbar processing machine is equipped with three processing units of punching, shearing and folding through foot switch or manual switch. It can be used for punching, shearing and folding of bus respectively. It is an ideal production equipment in high and low voltage electrical industry.
2. The punching unit adopts a vertical structure, which is fast and convenient to replace the mold, and improves the working efficiency. Various molds can be customized according to the user's requirements. The mold material is made of high-quality steel brand 12 manganese steel, with high punching accuracy, smooth inner circle and no burr on the surface. By changing the die, the processes of punching round hole, oblong hole, square hole, chamfering and embossing can be completed.
3. Flat shear or punching shear shall be adopted for shearing, and the workpiece shall be flat. No burr, no waste.
4. The bending unit adopts integral casting structure and horizontal processing. By quickly changing the mold, we can complete flat bending, vertical bending, elbow, crimping nose, copper folding rod, etc. The mold structure is reasonable and the replacement is convenient.

5. PLC control, automatic oil filling and discharging, with heat dissipation function. High performance hydraulic system, low voice, stable and reliable performance.

Product Parameters
VHB-200 Multifunctional Busbar Processing Machine Bending Punching Cutting 3-in-1 Busbar Processing Machine
Item Product model VHB-200
Specific parameters Functions Cutting, punching, flat bending
Voltage 220V/50Hz
Outlet force of busbar cutter 20T
Cutting capability 200mm×12mm(Copper bar/aluminum bar)
Outlet force of puncher 35T
Throat depth of puncher 110mm
Maximum punching thickness 12mm
Standard matching punching mold Φ10.5/Φ13.8/Φ17.5/Φ20.5mm
Outlet force of bender 20T
Bending capability 200mm×12mm
Weight 225kg
Packing dimensions 980mm×760mm×1320m
Contact me and "SEND" inquiry if you are interested in it. 3-in-1 Hydraulic Copper Busbar Processing Machine3-in-1 Hydraulic Copper Busbar Processing Machine3-in-1 Hydraulic Copper Busbar Processing Machine
