Home > Products > High Voltage Switchgear > Frame 63 2P DIN Rail High Capacity MCCB

Frame 63 2P DIN Rail High Capacity MCCB

  • Frame 63 2P DIN Rail High Capacity MCCB
  • Frame 63 2P DIN Rail High Capacity MCCB
  • Frame 63 2P DIN Rail High Capacity MCCB
  • Frame 63 2P DIN Rail High Capacity MCCB

Frame 63 2P DIN Rail High Capacity MCCB

    Unit Price: 5.4~6.37 USD
    Min. Order: 500 Piece/Pieces
    Packaging: Cartons
    Productivity: 50000
    Brand: TRANER
    Transportation: Ocean,Land,Air,Express
    Place of Origin: CHINA
    Supply Ability: 500000
    HS Code: 8536200000
    Port: Shanghai,Ningbo

Basic Info

Model No.: TRMF1 63A 2P

Product Description

MCCB TRM SERIES

Standard
TRM series Circuit Breaker and auxiliaries comply with the following international standard:
1.IEC/EN 60947-1
Low-Voltage Switchgear and controlgear-part 1: General rules;
2.IEC/EN 60947-2
Low-voltage switchgear and controlgear-part 2: Circuit breakers;

TRM series MCCB(Standard use environment for TRM series MCCB)
1. Ambient temperature: Within the range of -5ºC--+55ºC(However, when the temperature exceed 40ºC,it should be considered to reduce the capacity to use);
2. Relative humidity: Within the range of 45%--85%;
3. Altitude: 2000m or less(However, if it exceeds 1000m, atmosphere correction through humidity test and withstand voltage test can be considered);
4. Atmosphere where excessive steam, oil steam, smoke, dust, salt and other corrosive materials do not exist;

Classification:
According to the poles: 2-poles, 3-poles
According to the breaking capacity: S-type, H-type
According to the rated current: Fix type, Adjustable type(08In-1.0In)
MCCB frame 63A LS design

Technical data table

Ampere frame size TRMF1(63A)
Breaking capacity code S H
Product code and poles 2P 3P 2P 3P
TRMF1-S2 TRMF1-S3 TRMF1-H2 TRMF1-H3
Rated current, In(A) 15, 20, 30, 40, 50, 63
Adjustable part Rated current setting(0.8In-1.0In)
Lockup device for operating handle
Rated operational voltage, Ue(V), AC 50/60 Hz 240/415
Rated insulation voltage, Ui(V) 1000
Rated impulse withstand voltage, Uimp(kV) 8
Standard Conformity with IEC/EN 60947-2
Rated frequency(Hz) 50/60
Rated short-circuit breaking capacity, Icu(kA)
AC 240V 14 25
415V 5 7.5
Ics=% * Icu 100%
Mechanical life(circle) 8500
Electrical life(circle) 1500
Dimension:
Length*Width*Height
1-pole -
2-poles 100*50*60
3-poles 100*75*60
4-poles -

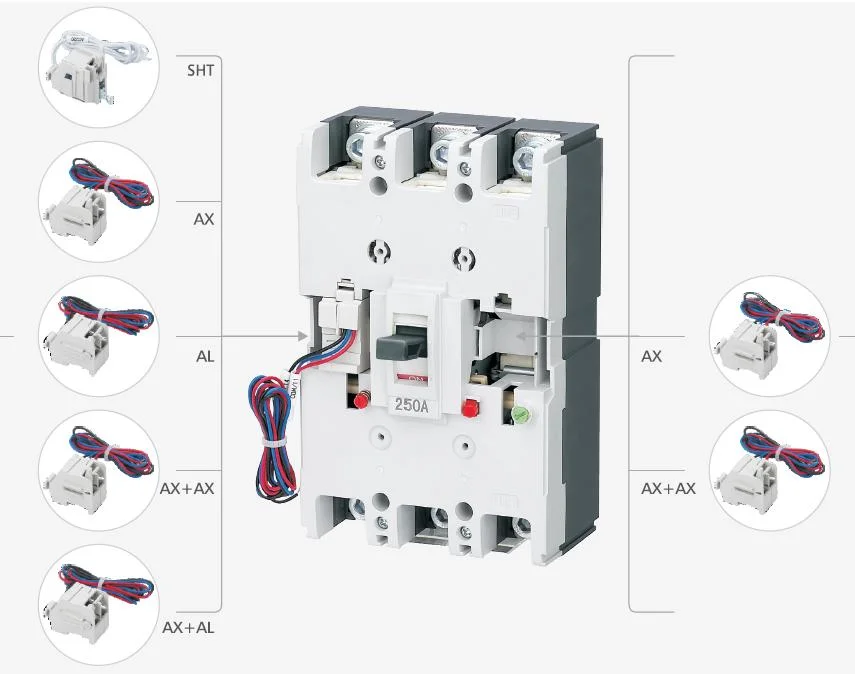

Built-in accessory:
modular design MCCB
Built-out accessory:

high breaking capacity circuit breaker

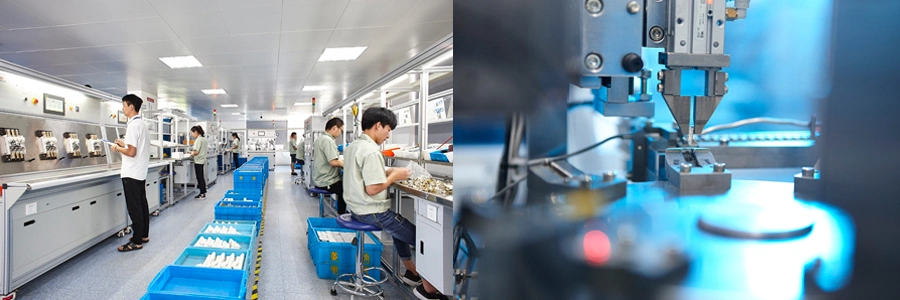

Company show:

MCCBMCCB
Exhibition:
MCCBMCCBMCCBUniversal terminal block


ZHEJIANG QIANNA ELECTRIC CO.,LTD



Zhejiang Qianna Electric Co., Ltd.(TRANER) is a company engaged in mould making, metal components making, plastic injection, spot welding, and PCB production&assembly&testing&calibration. Since it was found in 1990, TRANER won favorable comments from many domestic and international customers due to the superior quality, reasonable price and excellent after-sale service. TRANER always believe that "Integrity wins the market, Quality makes the future".

TRANER now focus on product MINI Safety Breaker MCB/RCCB/RCBO, MCCB&ELCB, Universal AL/CU Terminal Block, Smoke Alarm AC/DC, etc. We are now exported to 15 countries and regions including Norway, Netherlands, Germany, Span, Australia, Thailand, Vietnam, Pakistan, Republic of Korea and Taiwan etc.

Welcome to TRANER and looking forward build partnership with you!
