High Voltage Porcelain Arrester Bushing
Basic Info
Model No.: Arrester Bushing
Product Description

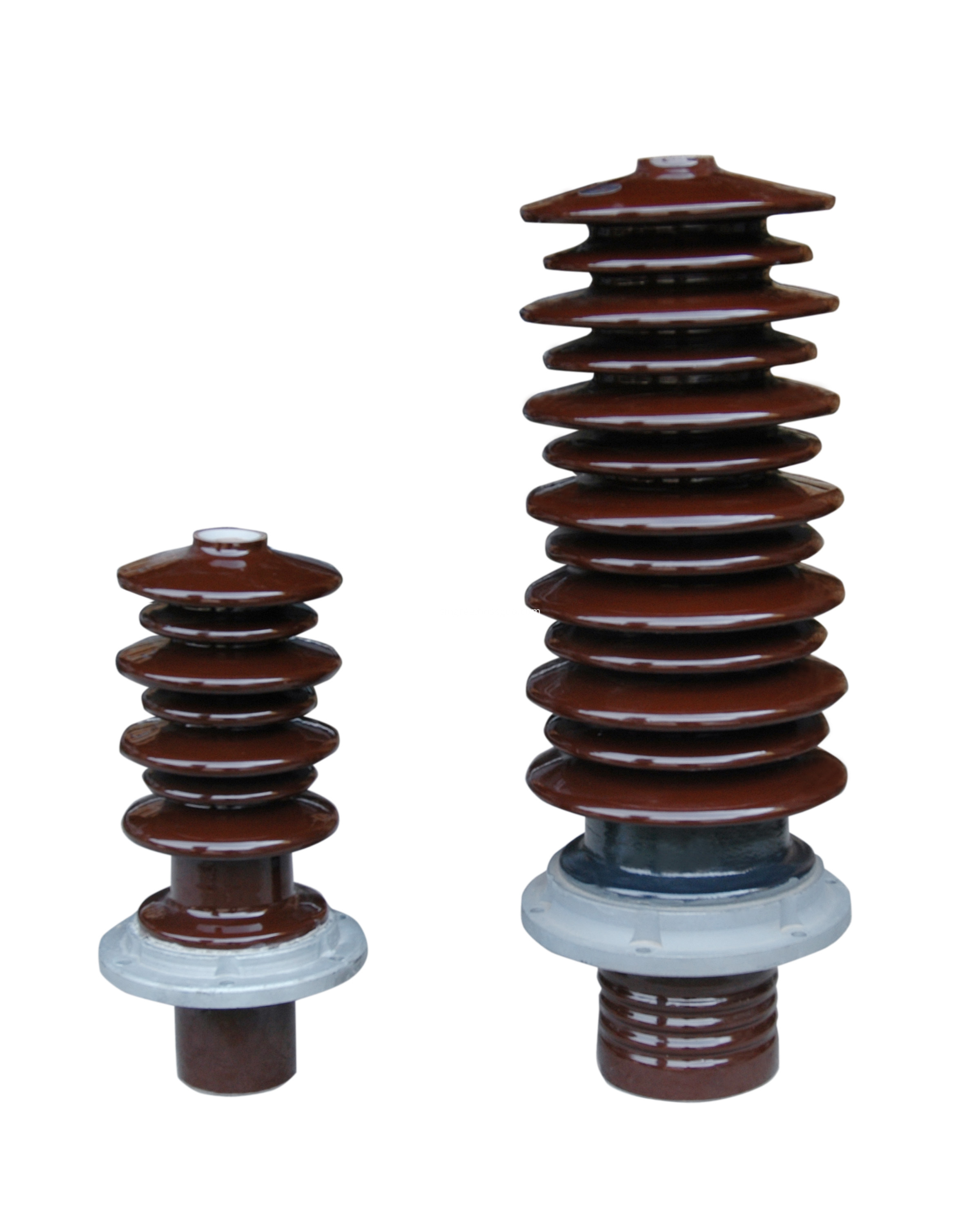

High Voltage Porcelain Arrester Bushing
High voltage Porcelain Insulator Bushing features suitable for 35kv ~ 500kv working voltage AC Power Supply system. There are two types of products, popular and dusty. The ambient temperature of the high voltage bushing is between -40 - +40 degrees Celsius.
MAIN DIMENSIONS AND STANDARD PARTICULARS | ||||||||||||
H | h1 | h2 | h3 | h4 | D | d1 | d2 | d3 | d4 | d5 | Creepage Distance(mm) | Weight(kg) |
164 | 12 | 8 | 4 | 8 | 110 | 38 | 10 | 60 | 80 | 90 | - | 1.1 |
210 | 12 | 8 | 4 | 8 | 110 | 38 | 10 | 60 | 80 | 90 | - | 1.4 |
210 | 12 | 8 | 4 | 10 | 88 | 24 | 10 | 38 | 58 | 66 | - | 1.4 |
210 | 12 | 8 | 4 | 8 | 94 | 30 | 10 | 44 | 64 | 72 | - | 1.3 |
164 | 12 | 8 | 4 | 10 | 88 | 24 | 10 | 38 | 58 | 66 | - | 1.1 |
164 | 12 | 8 | 4 | 8 | 94 | 30 | 10 | 44 | 64 | 72 | - | 1 |
240 | - | 9 | - | 25 | 95 | 33 | 9.5 | 39 | 60 | 74 | - | - |
335 | - | 8 | - | 25 | 95 | 33 | 9.5 | 33 | 60 | 74 | - | - |
315 | - | 8 | - | 20 | 90 | 32 | 9.5 | 39 | 60 | 74 | 458 | - |
550 | 80 | 360 | 40 | 40 | 215 | 140 | 100 | - | - | - | - | - |
708 | 104 | 484 | 72.5 | 72.5 | 232 | 165 | 112 | - | - | - | - | 2.1 |
160 | 70 | - | 45 | 45 | 232 | 166 | 112 | - | - | - | - | 6.7 |
840 | 104 | 616 | 72.5 | 72.5 | 232 | 165 | 112 | - | - | - | - | 2.5 |
630 | 38 | 548 | - | - | 291 | 151 | 111 | - | - | - | 2248 | - |
1005 | 24 | 938 | - | - | 330 | 190 | 140 | - | - | - | 3818 | - |
1261 | 131 | 943 | 96 | 96 | 304 | 185 | 120 | - | - | - | 3232 | 8.3 |
Our Services
1. Small orders accepted2. Fast producing time, prompt delivery
3. International approvals
4. Reply promptly in 24 hours
5. Best price
FAQ:
1. Q: How about payment terms ?A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be negotiated.
2. Q: Do you have some videos where we can see the line producing ?
A: Yes, we can provide some videos for reference.
3. Q: Are you a Manufacture Factory ?
A: Yes. We are the direct manufacture factory, and our factory has specialized in insulator,cut out fuse,arrester,power fitting,etc.
4. Q: How long is producing time ?
A: Normally it will take about 30 days for production.
5. Q: What is the standard of package ?
A: For small capacity, we use carton, but for big capacity, we will use strong wooden case for protection or double inner packs in a master carton.
6. Q: How do you make sure your good quality ?
A: We use the best raw material , and every single product will go through a series of strict test.
We warmly welcome friends both domestic and abroad to visit our company, if you have any questions, please contact with us directly.
Product Categories : Porcelain Insulator > Porcelain Bushing
